Dutchwest Extra-Large Catalytic Stove (2462)

QTY: 1-Bottom ~Old Part # 7000979~ (7000979A) +$444.00

QTY: 2-Outer Back [Models Made After 9/97 No Outside Air Slot] ~Old Part #7001234~ (7001234A) +$464.00

QTY: 2A-Outer Back [Models Made Before 9/97 Slot for Outside Air] (7001153) +$377.66

QTY: 3-Inner Bottom (7001149) +$267.44

QTY: 4-Inner Back [Models Made After 9/97 No Outside Air Slot] (7001233) +$182.83

QTY: 4-Inner Back [Models Made Before 9/97 Slot for Outside Air] (7000984) *No Longer Available* +$*0.00*

QTY: 5-Inner Top Assembly [Inner Top Web Gasket Tabs & Bolts] [includes: Inner Top, Baffle, Baffle Hardware, Refractory, Interam Gasket] (0000016) +$564.00

QTY: 6-Inner Top Web ~Old Part #7001110~ (7001110A) +$114.93

QTY: 6A Inner Top Web Interam Gasket [2 per unit, each sold separately] (1203540) +$10.95

QTY: 7-Inner Top Channel Cap (7000987) +$75.55

QTY: 8-Air Distributor (7000952) +$66.79

QTY: 9-Baffle [Model Made Before7/97] ~Old Part #7000953~ (7000953A) +$120.02

QTY: 9A Baffle Hardware Kit (7000953H) +$33.55

QTY: 10-Right Side [Model Made After 9/97 No Outside Air] ~Old Part #7001232~ (7001232A) +$395.04

QTY: 10A-Right Side [Model Made Before 9/97 Slot for Outside Air] (7001218) *No Longer Available* +$*0.00*

QTY: 11-Left Side ~Old Part #7001150~ (7001150A) +$302.24

QTY: 12-Side Door ~Old Part # 7001151~ (7001151A) +$252.25

QTY: 13 Front & Side Door Handle Nickel [Front and Side Nub with Shaft] (5004245) +$75.55

QTY: 13A Front & Side Door Handle Gold [Front and Side Nub with Shaft] (5004273) +$73.47

QTY: 13B Fallaway Handle with Gold NUB Complete (0005854) +$99.16

QTY: 13C Gold Handle Screw Only (1201293) +$11.38

QTY: 13D White Ceramic Handle [can Sub Maple Wood /Black Handle 1600664] (1600620) *No Longer Available* +$*0.00*

QTY: 13E Insert Lifter Handle Gold Nub Only (1600651) +$32.76

QTY: 13F Front Door Handle Assembly [includes: Fallaway Handle, Faucet Stub with Shaft, Pawl Assembly & Jam Nut] (0004240) +$208.68

QTY: 13G Maple Wood Black Handle (1600664) +$11.68

QTY: 14-Pawl Assembly 5004025 (30005157) +$49.14

QTY: 14A-Allen Wrench for Pawl Assembly (1205116) +$11.68

QTY: 15-Pawl Assembly [Ashdoor] (30002362) +$11.68

QTY: 16-Primary Air Manifold (7001152) +$126.37

QTY: 17-Front ~Old Part #7001154~ (7001154A) +$383.44

QTY: 18-Gasket [15ft per package] ~Old Part #7000910~ (1-00-7000910) +$55.36

QTY: 19-Ashdoor ~Old Part #7001156~ (7001156A) +$184.04

QTY: 20-Grate ~Old Part #7001148~ (7001148A) +$104.77

QTY: 21-Retainer Tab for the Web By-Pass Gate & Air Control (1601488) +$11.18

QTY: 22-Fan Plate ~Old Part #7000037~ (7000037A) +$116.20

QTY: 23-Damper [Hardware sold separately] ~Old Part #7000954~ (7000954A) +$84.44

QTY: 23A-By-Pass Gate [Damper] Hardware Kit (7000954H) +$48.93

QTY: 24-Damper Adjuster ~Old Part #7000950~ (7000950A) +$88.25

QTY: 24A Damper Adjuster Hardware Kit (7000950H) +$18.88

QTY: 29-Damper Crank (7000951) +$62.98

QTY: 30-Damper Operating Rod (7001160) +$41.52

QTY: 30A Washer (1202561) +$13.28

QTY: 30B Retaining Ring (1203058) +$10.95

QTY: 31 Back Grate [Inner Rear Back] ~Old Part # 7000396, 7001178~ (7001178A) +$185.26

QTY: 32 Top ~Old Part #7000985~ (7000985A) +$360.24

QTY: 33-Hearth ~Old Part #7001157~ (7001157A) +$196.22

QTY: 34-Flue Collar ~Old Part # 1304280~ (0000555) +$240.07

QTY: 35A-Leg Set of 4 ~Old Part #7000SL6~ (30006014) +$264.43

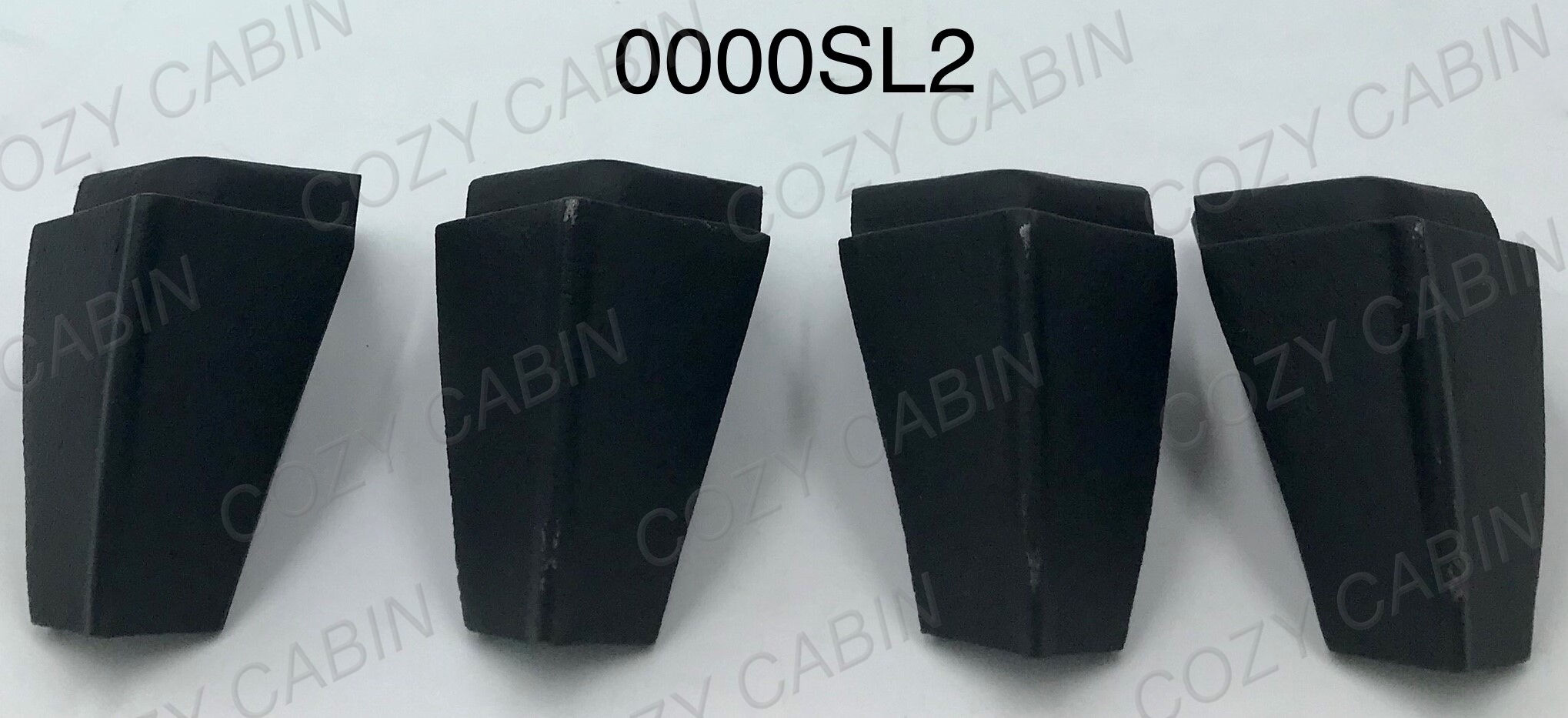

QTY: 35B-set of 4 Short [2 Inches] Legs (0000SL2) +$102.94

QTY: 35C-2 Inches Short Legs (7000SL2) +$30.46

QTY: 36-Damper Handle Stub Nickel (5004265) +$73.01

QTY: 36A-Damper Handle Stub Gold (5004267) +$87.29

QTY: 37-Ashdoor Handle with Shaft Nickel (5004237) +$75.55

QTY: 37A-Ashdoor Handle with Shaft Gold (5004271) +$87.29

QTY: 38-Ash Pan (7000G89) +$131.45

QTY: 40-Glass (7001161) +$337.04

QTY: 40A-Glass Gasket [15 ft per package] ~Old Part #1203591~ (1-00-1203591) +$55.28

QTY: 41-Manifold Cap (7001165) +$28.69

QTY: 42-Holder for Door Handle Insert (1600600) +$23.35

QTY: 43-Primary Air Control (30002737) +$50.41

QTY: 44-Glass Clip [4 per unit, each sold separately] (1601396) +$12.26

QTY: 44A-Glass Clip Screw [4 per unit, each sold separately] (1200996) +$11.18

QTY: 45-Spring for Primary Control (1201846) +$11.18

QTY: 47-Front Door (7001155A) +$252.25

QTY: 48-Inner Bottom Screw (1201394) +$11.18

QTY: 50-Andiron [2 per unit, each sold separately] ~Old Part #7001117~ (7001117A) +$65.52

QTY: 53-Side Wear Plate ~Old Part #7001199~ (7001199A) +$109.85

QTY: 54-Interam Gasket [for Catalytic Combustor] ~Old Part #1203533~ (1203533A) +$28.69

QTY: 55-Catalytic Combustor ~Old Part #000CB56~ (SRV50001038) +$584.00

QTY: 56-Refractory [Stoves Made Before7/97] (1602515) +$227.89

QTY: 56A-Refractory [Stoves Made After 7/97] (1602514) +$264.43

QTY: 57-Combustor Air Inlet ~Old Part #7001128~ (7001128A) +$74.28

QTY: 58-Probe Thermometer ~Old Part #7000948~ (7000948A) +$108.58

QTY: 59-Chrome Bar (30002732) +$66.79

QTY: 60-Refractory package (1602514) +$264.43

QTY: 61-Inner Top Extra Large (7001226) +$360.24

QTY: 62-Inner Top Insert/Baffle Combination (7001225) +$131.45

QTY: 63-Black Wood Handle with Lifter Nickel (30002787) +$34.03

QTY: 64-8 Inches Oval to 8 Inches Round Adapter [Low Profile] (0001836) +$165.77

QTY: 65-Dual Speed Convection Fan (0009973) +$614.00

QTY: 66-Vermont Castings Gloves (0000112) +$50.00

QTY: 67-Dutchwest Stove Gasket Kit (000GK99) +$170.65

QTY: 68-Air Control Ball Nickel (30002729) +$11.68

QTY: 69-Dial Damper Theaded Stud (1204253) +$15.68

QTY: 70-By-Pass Operating Rod Clip (1203058) +$10.95

QTY: 71-Bottom Heat Shield Extra Large [includes Hardware Kit] (0001075) +$164.56

QTY: 72-Rear Heat Shield Extra Large (0001061) +$418.24

QTY: 72A-Hardware Kit Only [FITS Bottom or Rear Heatshield] (0001075H) +$110.50

QTY: 73 Warming Shelf ~Old Part #7001222~ (7001222A) +$130.18

QTY: 73A Warming Shelf Bracket [2 per unit, each sold separately] ~Old Part #7001223~ (7001223A) +$74.28

QTY: 73B Warming Shelf Cap Screw Hex Head (1201372) +$11.18

QTY: 73C Warming Shelf Washer (1202470) +$12.26

QTY: 74-Fan Thermostat with Cord (0000FT1) +$240.07

QTY: 75-Fan Thermostat with O Cord (0000FT3) +$85.45

QTY: 76-Fan Rheostat (000FT5) +$127.68

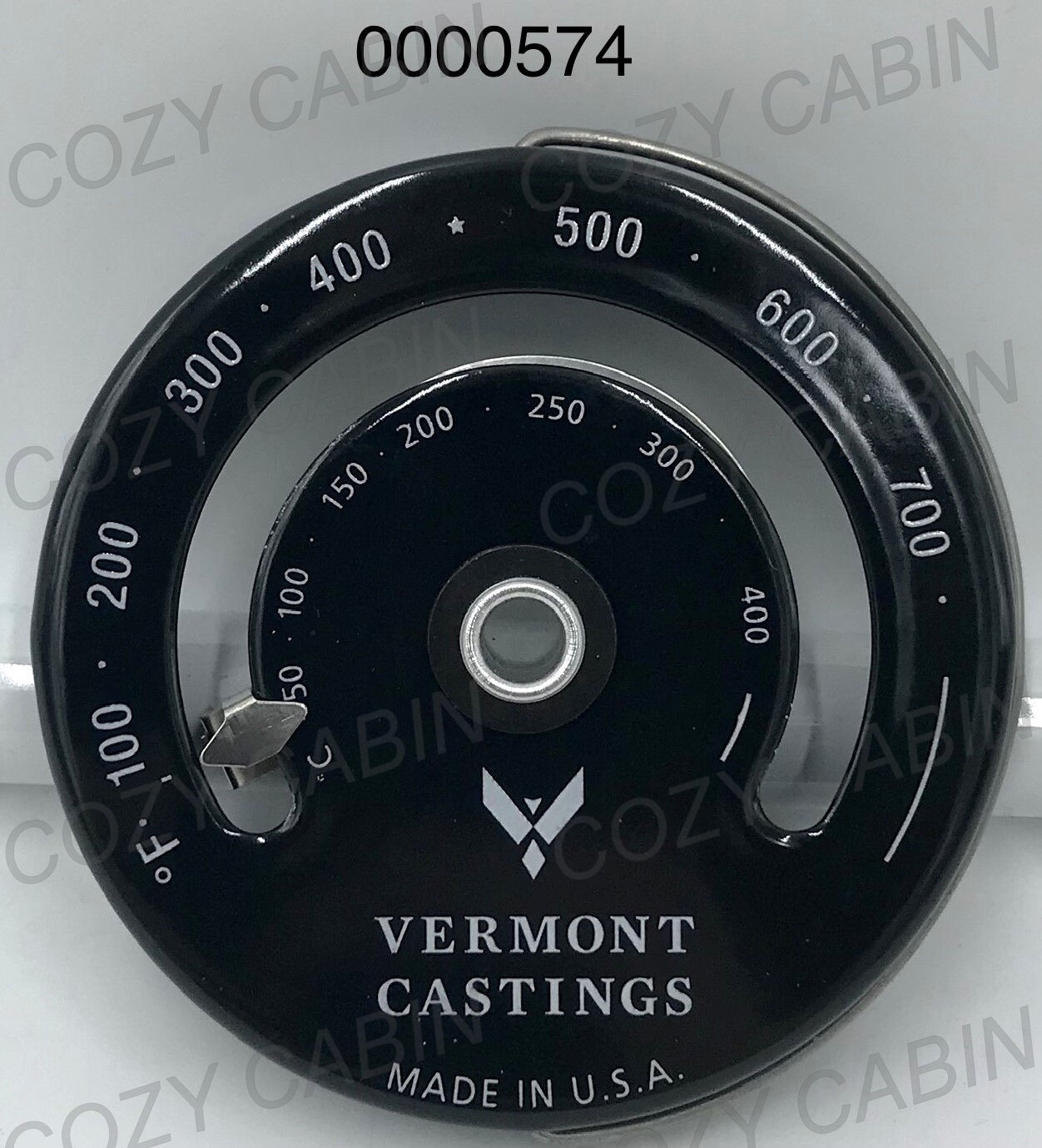

QTY: 77-Stove SurFace Thermometer (0000574) +$81.90

QTY: 78-Woodbox Cast Iron (0000930) +$529.00

QTY: 79-Child Guard Fence 3 Sided (0000975) +$189.00

QTY: 80-Trivet with Handle (0000094) +$60.00

QTY: 81-Cast Iron Steamer Twilight (0000794) +$259.00

QTY: 82-Cast Iron Steamer Bordeaux Enamel (0000793) +$319.00

QTY: 83-Cast Iron Steamer Majolica Brown Enamel (0000791) +$309.00

QTY: 84-Cast Iron Steamer Ebony Black Enamel (0000784) *No Longer Available* +$*0.00*

QTY: 85-Cast Iron Steamer Biscuit Enamel (0000775) *No Longer Available* +$*0.00*

QTY: 100-4MM X 14MM Phillips TRS HD Sheet Metal Screw [StovePipe to Flue Collar] (1202089) *No Longer Available* +$*0.00*

QTY: 101-8MM X 1 1/4 PHIL TRUS HD WD Screw [WALL Bracket] (1201301) +$11.18

QTY: 102-1/4_20 X 1/2 Hex Head Cap Screw [Heat Shield By-Pass Connector Clip Sequoia Glass Frame] (1201338) +$12.65

QTY: 103-BC-20 Hex Nut [Heat Shield] (1203210) +$11.18

QTY: 104-Phillips Flat Head Screw (1200881) +$11.18

QTY: 105-1/4_20 X 1-1/4 Hex Head Cap SCottage Red [Bottom Back Leg Bolt] (1201378) +$11.18

QTY: 106-1/4 X 7/8 Flat Washer [Bottom Back Front Top Leg Bolt] (1202470) +$12.26

QTY: 107-1/4_20 X 3/4 Hex Head Cap Screw [Side Part Rear Part By-Pass Gate Side Support Grate Back Side Half Wall BOOT Plate Sequoia Inner Back & Flue Collar] (1201374) +$11.18

QTY: 108-1/4 STD Flat Washer [Side & Rear Part Back Baffle Top Front Door Boot Plate Sequoia Inner Back Sides Front Grate Back Hinges] (1202474) +$11.18

QTY: 109-1/4_20 X 5/8 Phillips Flat Head Machine Screw [Back Cover Panel] (1200865) +$14.34

QTY: 110-1/4_20 X 5/8 Hex Head Cap Screw [Back Inlet Plate Sequoia Hinges & Hearth (1201372) +$11.18

QTY: 111-1/4_20 X 1-1/2 CRS Stud [Back Front Top] (1204214) +$18.34

QTY: 112-1/2-20 Hex Nut [Back Front Top Sides to Bottom A Plus Ashdoor Frame] (1203210) +$11.18

QTY: 113-Hinge Pin (1201836) +$10.95

QTY: 114-Sequoia Ashdoor Hinge Pin (1201837) +$18.34

QTY: 115-1/4_20 X 1 Hex Head Cap Screw [Baffle A Plus Ash Bin] ~Old Part #1201326~ (1201370) +$11.18

QTY: 116-1/4_20 X 1/2 Hex Head Cap Screw [Door Panel Torsion Bar Clip] (1201338) +$12.65

QTY: 117-3/8-16 Hex Jam Nut [Door Shaft] ~Old Part #1203157~ (1203290) +$11.18

QTY: 118-1/4 X 1-1/4 Fender Washer [Rocker Grate] (1202527) +$12.26

QTY: 119-1/4_20 X 1-1/2 Phillips Flat Head Screw [Rocker Grate] (1200815) +$11.18

QTY: 120-Wing Nut 1/4_20 [Rocker Grate] (1203110) +$10.95

QTY: 121-10-24 X 1/2 Hex Head Cap Screw [Rocker Grate] (1201322) +$12.65

QTY: 122-3/8-16 X 1-1/2 Hex Head Cap Screw [By-Pass Grate Connector] (1201456) +$11.18

QTY: 123-3/8-16 Hex Top Lock Jam Nut [By-Pass Grate Connector] (1203290) +$11.18

QTY: 124-1/4_20 X 7/8_94 10MM Hex Head Cap Screw [Top Side for Shroud] (1201375) +$11.18

QTY: 125-7/16 X 5/8 Lock Washer [Brass Dial] (1202463) +$Call to Order

QTY: 126-3/8-16 Narrow Hex Nut [Brass Dial] (1203161) +$12.26

QTY: 127-1/4_20 X 1 3/4 Phillips Flat Head [Sides to Bottom A Plus Ashdoor Frame] (1200830) +$10.95

QTY: 128-1/4 X 3/4 Washer [GrateBack] ~Old Part #1202469~ (1202470) +$12.26

QTY: 129-1/4_20 X 2 Pin Hex Head CS [Inner Top Channel Sequoia Baffle] (1201392) +$11.68

QTY: 130-1/4_20 X 1 1/4 Stud [Sequoia Back] (1204212) +$11.18

QTY: 131-1/4_20 X 2 Phillips Flat HD MS [Sequoia Air Distributor ] (1200848) +$11.18

QTY: 132-1/4_20 X 1 1/4 Phillips Flat Head Screw [Sequoia Shaker Grate Cover Inlet Plate] (1200811) +$11.18

QTY: 133-1/4_20 1 Phillips Flat Head Screw [Sequoia Top] (1200809) +$11.18

QTY: 134-1/4 Flat Washer [Sequoia Side Hinge] [each sold separately] (1202473) +$12.26

QTY: 135-5/16-18 X 5/16 Socket Set Screw [Sequoia Door Catch] (1200563) +$11.18

QTY: 136-1/4 X .5 OD Flat Washer [Sequoia Hearth] (1202475) +$11.18

QTY: 137-1/4_20 X 1 Hex Head Cap Screw [Sequoia Leg Bolt] (1201376) +$11.18

QTY: 140 8 Inch Oval to 8 Inch Round Low Profile Stove Adapter Black (0001836) +$165.77

QTY: 141 8 Inch Oval to 8 Inch Round Standard Adapter Black (0001855) +$79.00

QTY: 142 8 Inch Oval to 8 Inch Round Elbow Black (0001846) +$174.30

QTY: 143 8 Inch Oval to 6 Inch Round Adapter Black (0001860) +$121.29

QTY: 144 8 Inch Oval to 8 Inch Round Offset Stove Adapter Black (0001841) +$165.77
