Main : Wood Burning : Wood Stove Parts

Defiant Wood Stove (1910)

Item#: 1910

Price: $0.00

Order Now

Description
Related Items

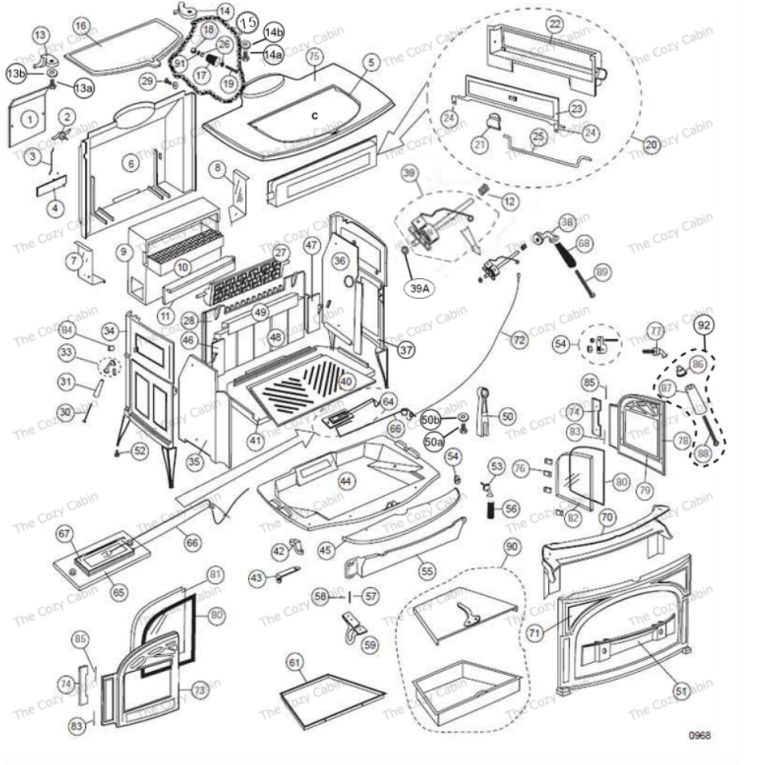

Item Description (Part Number)

QTY: 1-Secondary Air Cover Plate (1601492) +$59.17

QTY: 2-Secondary Air Probe Assembly ~Old Part #1601489~ (1601489A) +$120.02

QTY: 3-Secondary Air Link (1601486) +$10.95

QTY: 4-Secondary Air Flap (1601490) +$28.69

QTY: 5-Griddle Gasket Kit [includes Gasket, Adhesive and Directions] (0003441) +$90.79

QTY: 6-Back (1300631) +$Call to Order

QTY: 7-Left Heat Deflector (1608629) +$117.47

QTY: 8-Right Heat Deflector (1608630) +$117.47

QTY: 9-Refractory Assembly with Access Panel ~Old Part #1602510~ (1602510A) +$624.00

QTY: 10-Catalytic Combustor (30001152) +$464.64

QTY: 10A-Metal Catalyst [Combustor] ~Old Part # 30004588~ (30001152) +$464.64

QTY: 11-Refractory Access Panel (1602511) +$141.61

QTY: 12-Thermostat Friction Spring (1201846) +$11.18

QTY: 13-Left Griddle Quad ~Old Part #1301807~ (1301807A) +$84.44

QTY: 13A-1/4_20X1/2_94 Hex Head Cap Screw (1201338) +$12.65

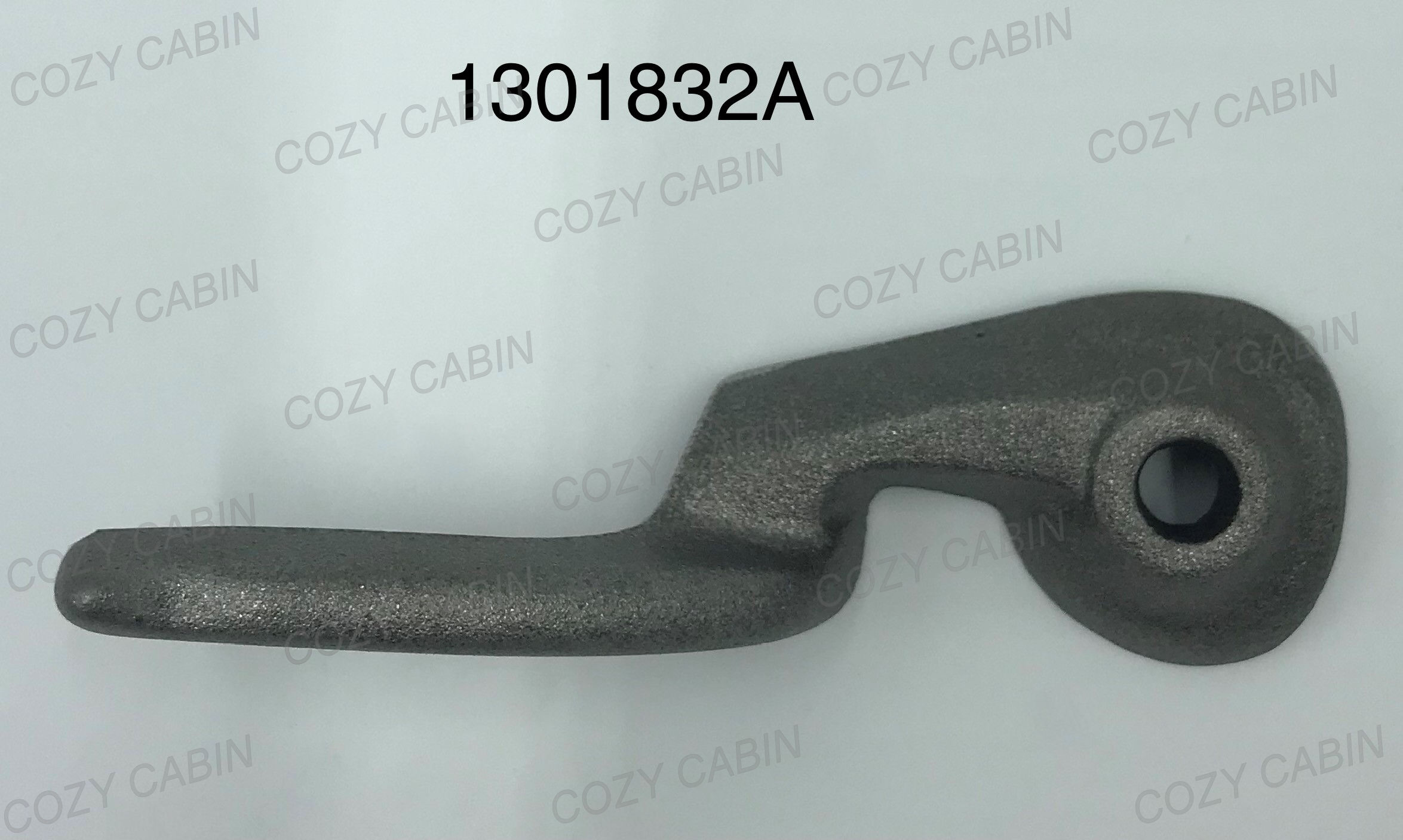

QTY: 14-Right Griddle Quad ~Old Part #1301832~ (1301832A) +$84.44

QTY: 14A-1/4_20X1/2_94 Hex Head Cap Screw (1201338) +$12.65

QTY: 15-Griddle Handle Complete with Hardware (0004362) +$80.63

QTY: 16-Griddle ~Old Part #1300641~ (1300641A) +$325.44

QTY: 17-Griddle Handle ~Old Part #1600657 (1600657A) +$32.76

QTY: 18-Griddle Handle Spacer (1600070) +$23.35

QTY: 19-Griddle Handle Bolt (1201308) +$11.18

QTY: 20 Upper Firebrick Assembly (5000030) +$487.84

QTY: 21-Damper Ramp (1300643) +$26.02

QTY: 21A-Damper Ramp Hardware Kit (1300643H) +$16.66

QTY: 22-Upper Fireback (1300633) +$185.26

QTY: 23-Damper (1300634) +$79.36

QTY: 24-Damper Tab (1601488) +$11.18

QTY: 25-Damper Rod (1600065) +$135.26

QTY: 26-Griddle Handle Bushing (1201895) +$24.52

QTY: 27-Throat Baffle ~Old Part #1300635~ (SRV1300635) +$139.07

QTY: 28 Lower Fireback (1300638) +$133.99

QTY: 29-Upper Fireback Bolt ~Old Part #1301374~ (1201381) +$11.18

QTY: 30-Damper Handle Screw (1201310) +$15.06

QTY: 31-Black Maple Damper Handle [Wood Part Only] (1600664) +$11.68

QTY: 33-Damper Handle Brass Assembly (5004265) +$73.01

QTY: 34 Left Side Matte Black (1300630) +$221.27

QTY: 34A Left Side Midnight Black (2370630) +$289.73

QTY: 35-Left Air Plate [Inner Side] (1300637) +$137.80

QTY: 36-Right Air Plate (1300636) +$132.72

QTY: 37 Right Side (1300629) *No Longer Available* +$*0.00*

QTY: 38-Thermostat Handle Base Assembly ~Old Part # 5004264~ (30002716) +$42.79

QTY: 39-Thermostat (5005470) +$88.25

QTY: 39A-Thermostat Washer (1202471) +$12.26

QTY: 40 Grate ~Old Part #1300639~ (1300639A) +$152.38

QTY: 41-Primary Air Cover (1300622) +$186.37

QTY: 42-Top Ashdoor Hinge Support (1300620) +$43.60

QTY: 43-Door Handle Holder (1600059) +$14.92

QTY: 44-Bottom (1300618) *No Longer Available* +$*0.00*

QTY: 45-Ashlip ~Old Part # 1300621~ (1300621A) +$112.39

QTY: 46-Left Side Wedge (1300628) +$57.90

QTY: 47-Right Side Wedge (1300644) +$45.33

QTY: 48-Firebrick [1 _BC_94 X 4 _BD_94 X 9] (1601103) +$11.68

QTY: 49-Firebrick Retainer (1600066) +$121.29

QTY: 50-Andiron [2 per unit, each sold separately] ~Old Part #1300646~ (1300646A) +$74.28

QTY: 50A-Andiron Bolt [2 per unit, each sold separately] (1201340) +$11.18

QTY: 50B-Andiron Washer (1202470) +$12.26

QTY: 51-Andiron Shelf ~Old Part #1300640~ (1300640A) +$85.71

QTY: 52-Leg Leveler (1201745) +$27.32

QTY: 53-Ashdoor Handle Shaft (1600622) +$46.60

QTY: 54-Door Latch Assembly 5004025 (30005157) +$49.14

QTY: 54A-Jam Nut (1203290) +$11.18

QTY: 55-Ashdoor ~Old Part # 1300619~ (1300619A) +$164.56

QTY: 56-Ashdoor Handle [Wood] (1600663) +$11.68

QTY: 57-Ashdoor Hinge Pin (1206061) +$10.95

QTY: 58-C-Clip (1600553) +$10.95

QTY: 59-Ashdoor Bottom Hinge Support ~Old Part #s 1300642, 1-00-1300642~ (1300642A) +$76.82

QTY: 60-Ashpan ~Old Part #1600068~ (30001690) +$202.31

QTY: 61-Ashpan Bracket (1600060) +$158.48

QTY: 62-Ashpan Cover (1600069) +$80.92

QTY: 63-Ashpan Cover Handle (1301254) +$45.33

QTY: 64-Primary Air Valve Assembly (5000024) +$Call to Order

QTY: 65-Primary Air Frame (1307411) +$47.87

QTY: 66-Primary Air Rod (1600058) +$24.69

QTY: 67-Primary Air Valve (1307412) +$71.74

QTY: 68-Thermostat Handle (1600660) +$11.68

QTY: 70-Airwash Manifold (1300627) +$127.64

QTY: 71-Front (1300624) +$231.61

QTY: 72-Thermostat Cable (5005471) +$32.76

QTY: 73 Left Door ~Old Part # 1300626~ (1300626A) +$227.89

QTY: 74-Door Hinge Strip [2 per unit, each sold separately] ~Old Part #1300645~ (1300645A) +$59.17

QTY: 75 Top-Matte Black ~Old Part # 1300632~ (1300632A) +$364.56

QTY: 75A-Top-Sand ~Old Part #1320632~ (SRV1320632) +$875.03

QTY: 75B-Top-Blue (1330632) *No Longer Available* +$*0.00*

QTY: 75C-Top-Green (2310632) +$727.95

QTY: 76-Glass Clip [4 per unit, each sold separately] (1601396) +$12.26

QTY: 76A-Clip Screw [4 per unit, each sold separately] (1200980) +$11.18

QTY: 77-Front Door Handle and Shaft (5004237) +$75.55

QTY: 78 Right Door ~Old Part # 1300625~ (1300625A) +$252.25

QTY: 79-Door Gasket [15ft per package] ~Old Part #1203589~ (1-00-1203589) +$45.33

QTY: 80-Glass Gasket ~Original Gasket was Flat/White new Gasket is Round/Black ~ [both Windows] [10ft per package] ~Old Part #s 1203512, 1203556, 1203556A, 1-00-1203556~ (1-00-1186258229) +$28.69

QTY: 81-Left Door Glass (1600064) +$264.43

QTY: 82-Right Door Glass (1600062) +$264.43

QTY: 83-Lower Door Hinge Pin ~Old Part # 1600547~ (30002727) +$10.95

QTY: 84-Spacer [for Damper Rod] (1201779) +$11.18

QTY: 85-Upper Door Hinge Pin ~Old Part # 1600547~ (30002727) +$10.95

QTY: 86-Handle Base Stub (1600650) +$27.35

QTY: 87 White Ceramic Handle [can Sub Maple Wood /Black Handle 1600664] (1600620) *No Longer Available* +$*0.00*

QTY: 87A Maple Wood Black Handle (1600664) +$11.68

QTY: 88-Handle Bolt (1201294) +$12.18

QTY: 89-Thermostat Handle Bolt (1201243) +$12.26

QTY: 90-Ash Pan Cover Assembly (30001690) +$202.31

QTY: 90A-Ashpan ~Old Part #1600068~ (30001690) +$202.31

QTY: 90B-Ashpan Cover (1600069) +$80.92

QTY: 91-Flat Washer (1202475) +$11.18

QTY: 91A-Finish Bag (0005928) +$Call to Order

QTY: 92-White Ceramic Handle with Screw & Insert (0004342) +$101.43

QTY: 92A-Complete Black Fallaway Handle Kit [includes: Black Handle, Screw & Nickel nub] (30004175K) +$73.01

QTY: 92B-Handle BaseS Stub (30002714) +$30.02

QTY: 92C Stainless Steel Socket for Handle (1200334) +$10.95

QTY: 93-Linkage Damper (1301641) +$39.78

QTY: 94-Bottom Heat Shield (0001905) +$421.27

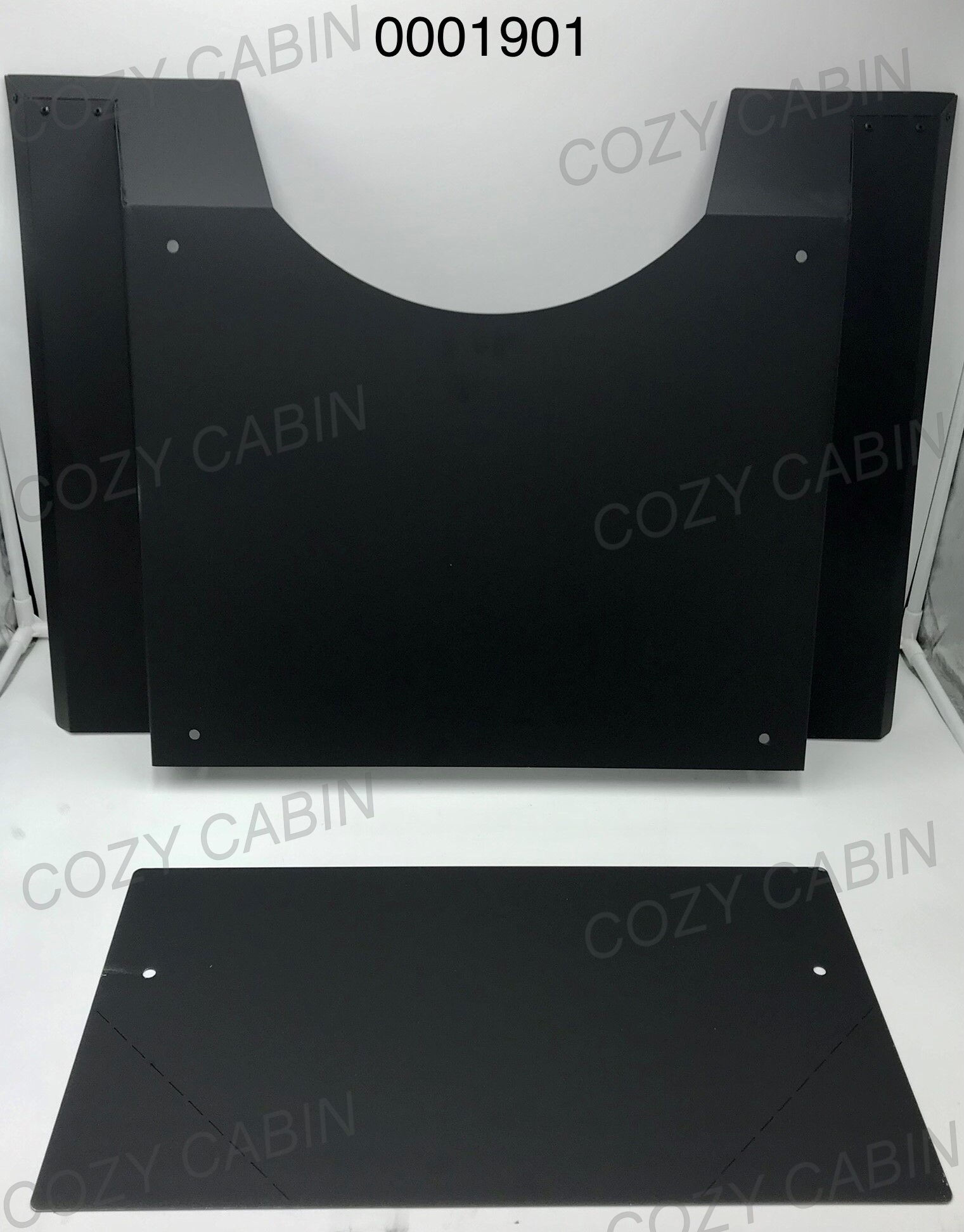

QTY: 95-Rear Heat Shield (0001901) +$337.04

QTY: 96-Heat Shield Spacer Hardware, Set of 4 [Rear or Bottom] (0005834) +$80.63

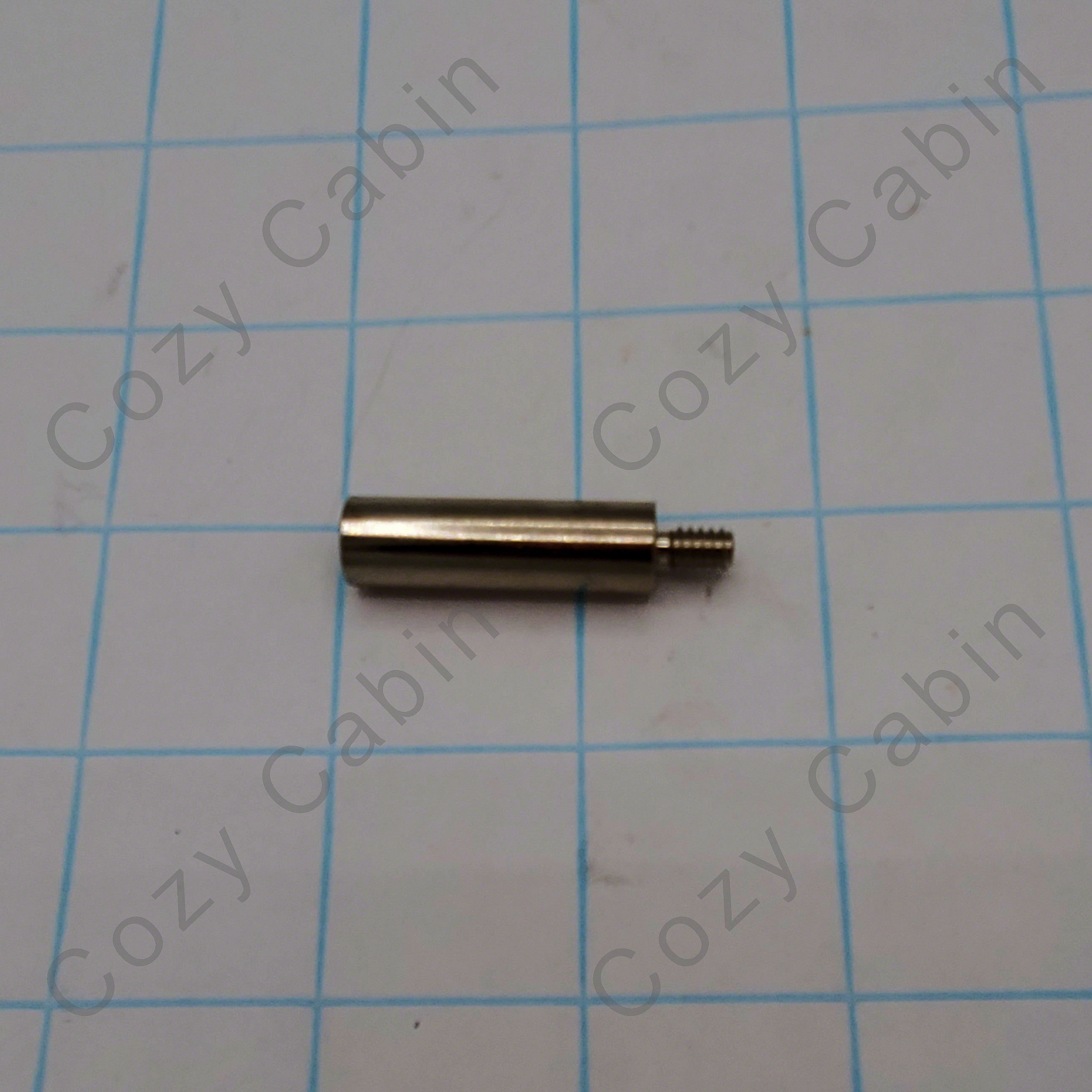

QTY: 97-Heat Shield Spacer [4 per unit, each sold separately] (1601755) +$32.92

ITEMS NOT SHOWN

Item Description (Part Number)

QTY: 98 Gasket Kit [includes: Damper, Griddle, Ashdoor, Front Doors, Glass Gaskets and Cement] (0004322) +$140.18

STOVE PIPE

Item Description (Part Number)

QTY: 99 8 Inch Oval to 8 Inch Round Low Profile Stove Adapter Black (0001836) +$165.77

QTY: 100 8 Inch Oval to 8 Inch Round Standard Adapter Black (0001855) +$79.00

QTY: 101 8 Inch Oval to 8 Inch Round Elbow Black (0001846) +$174.30

QTY: 102 8 Inch Oval to 6 Inch Round Adapter Black (0001860) +$121.29

QTY: 102A 8 Inch Oval to 8 Inch Round Offset Stove Adapter Black (0001841) +$165.77

Accessories

Item Description (Part Number)

QTY: 103 Sparkscreen (0001907) +$136.50

QTY: 104 Vermont Castings Leather Stove Gloves (0000112) +$50.00

QTY: 105 Stove Surface Thermometer (0000574) +$81.90

QTY: 106 Woodbox Cast Iron (0000930) +$529.00

QTY: 107 Child Guard Fence 3 Sided (0000975) +$189.00

QTY: 108 Trivet with Handle (0000094) +$60.00

QTY: 109 Cast Iron Steamer Twilight (0000794) +$259.00

QTY: 109A Cast Iron Steamer Bordeaux Enamel (0000793) +$319.00

QTY: 109B Cast Iron Steamer Majolica Brown Enamel (0000791) +$309.00

QTY: 109C Cast Iron Steamer Ebony Black Enamel (0000784) *No Longer Available* +$*0.00*

QTY: 109D Cast Iron Steamer Biscuit Enamel (0000775) *No Longer Available* +$*0.00*

WARMING SHELF KITS

[Includes: 1 Shelf, 1 Left Bracket, 1 Right Bracket, 1 Dragon Bracket, 2 Mittenracks and Hardware]

Item Description (Part Number)

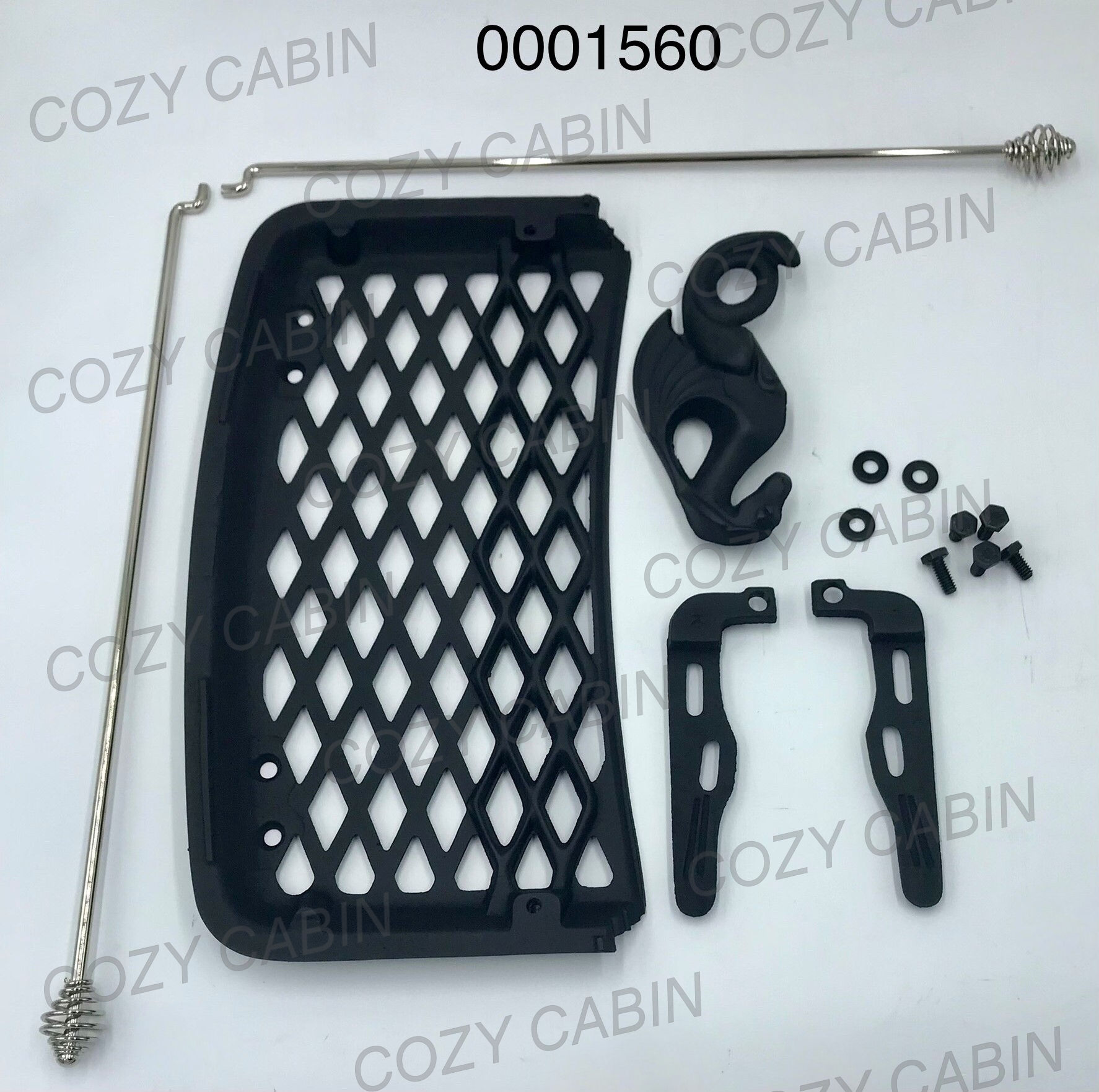

QTY: 110 Warming Shelf Kit [Classic Black] (0001560) +$189.00

QTY: 111 Warming Shelf Kit [Sand] (0001562) *No Longer Available* +$*0.00*

QTY: 112 Warming Shelf Kit [Forest Green] (0001566) +$210.41

QTY: 113 Warming Shelf Kit [Midnight Blue] (0001567) *No Longer Available* +$*0.00*

INDIVIDUAL PARTS

Item Description (Part Number)

QTY: 115 Shelf Only [Classic Black] [2 per unit, each sold separately] (1302208A) +$127.64

QTY: 116 Shelf Only [Sand] (1322208) *No Longer Available* +$*0.00*

QTY: 117 Shelf Only [Forest Green] (2312208) +$Call to Order

QTY: 118 Shelf Only [Midnight Blue] (2372208) *No Longer Available* +$*0.00*

QTY: 119 Dragon Bracket Only [Classic Black] (1302220A) +$86.98

QTY: 120 Dragon Bracket [Sand] (1322220) +$180.72

QTY: 121 Dragon Bracket [Forest Green] (2312220) *No Longer Available* +$*0.00*

QTY: 122 Dragon Bracket [Midnight Blue] (2372220) *No Longer Available* +$*0.00*

QTY: 123 Left Cast Bracket (1302221A) +$60.44

QTY: 124 Right Cast Bracket (1302222A) +$56.63

QTY: 125 Mittenrack [2 per shelf, each sold separately] (1601705) +$17.01

QTY: 126 Hex Head Cap Screw [used without Washer] [2 per shelf, each sold separately] (1201338) +$12.65

QTY: 127 Hex Head Cap Screw [used with Washer] [3 per shelf, each sold separately] (1201372) +$11.18

QTY: 128 Washer [3 per shelf, each sold separately] (1202473) +$12.26

QTY: 129 Leveling Set Screw [4 per shelf, each sold separately] (1200422) +$10.95

QTY: 130 Allen Wrench (1205116) +$11.68
