Includes Models: 0001920 Classic Black, 0001923 Bordeaux, 0001924 Ebony, 0001927 Majolica Brown, 0001928 Vermont Classic Green
Ending Manufacturing Date: February 2020
Item Description (Part Number)
QTY: 1 Top Classic [recommend replacing Gasket] ~Old Part # 30001654~ (30001654A) +$264.43
QTY: 1A Top Ebony [recommend replacing Gasket] (SRV30001660) +$665.05
QTY: 1B Top Forest Green [recommend replacing Gasket] ~Old Part # 30001661~ (SRV30001661) *No Longer Available* +$*0.00*
QTY: 1C Top Bordeaux [recommend replacing Gasket] ~Old Part #30004007~ (SRV30004007) +$474.00
QTY: 1D Top Suede Brown [recommend replacing Gasket] (30002588) +$341.60
QTY: 1E Top Vermont Classic Green [recommend replacing Gasket] ~Old Part # 30003167~ (SRV30003167) +$494.00
QTY: 2 Right Side Classic ~Old Part #30001655~ (30001655A) +$203.53
QTY: 2A Right Side Suede Brown (30002590) +$Call to Order
QTY: 2B Right Side Vermont Green (30003169) +$Call to Order
QTY: 2C Right Side Bordeaux (30004009) +$403.42
QTY: 2D Right Side Ebony (30001662) +$Call to Order
QTY: 2E Right Side Forest Green (30001663) +$264.86
QTY: 3-Secondary Air Channel Right (30000606) +$88.25
QTY: 4 Left Side Classic ~Old Part #30001656~ (30001656A) +$196.22
QTY: 4A Left Side Vermont Classic Green (30003170) +$Call to Order
QTY: 4B Left Side Suede Brown (30002591) +$Call to Order
QTY: 4C Left Side Bordeaux ~Old Part #30004010~ (SRV30004010) +$464.64
QTY: 4D Left Side Ebony (30001664) +$Call to Order
QTY: 4E Left Side Forest Green (30001665) +$264.86
QTY: 5-Secondary Air Channel Left (30000607) +$92.06
QTY: 6-Secondary Air Tube (30000368) +$56.63
QTY: 7-Bottom ~Old Part #30000343~ (30000343A) +$227.89
QTY: 8-Bottom Inner (30000346) +$112.39
QTY: 9-Ashlip Classic ~Old Part # 30000352~ (30000352A) +$163.34
QTY: 9A-Ashlip Ebony (30000482) +$284.05
QTY: 9B-Ashlip Forest Green (30000491) +$112.68
QTY: 9C-Ashlip Suede Brown (30002593) +$112.68
QTY: 9D-Ashlip Bordeaux (30004012) +$272.49
QTY: 9E-Ashlip Vermont Classic Green (30003172) +$144.59
QTY: 10-Ashpan (30000363) +$107.31
QTY: 11-Thermostat Cover (30000371) +$44.06
QTY: 12-Back ~Old Part #30000347~ (30000347A) +$195.01
QTY: 13-Fireback (30000358) +$81.90
QTY: 14-Legs [set of 4] Suede Brown (30002594) +$Call to Order
QTY: 14A-Legs [set of 4] Bordeaux (30004013) +$Call to Order
QTY: 14B-Legs [set of 4] Vermont Classic Green (30003173) +$Call to Order
QTY: 14C-Legs [set of 4] Classic (30000502) +$Call to Order
QTY: 14D-Legs [set of 4] -Ebony (30000539) +$Call to Order
QTY: 14E-Legs [set of 4] Forest Green (30000540) +$173.55
QTY: Leg [Single] Suede Brown (30002592) +$70.13
QTY: Leg [Single] ~Old Part # 30004011~ (SRV30004011) +$192.57
QTY: Leg [Single] Vermont Classic Green (30003171) +$60.71
QTY: Leg [Single] Ebony (30000484) +$Call to Order
QTY: Leg [Single] Classic ~Old Part #30000360~ (30000360A) +$76.82
QTY: Leg [Single] Forest Green (30000493) +$76.52
QTY: 15-Leg Bolt 3/8 Inches-16X1INHex Bolt (1201432) +$11.68
QTY: 16-3/8 Inches Flat Washer (1202488) +$11.18
QTY: 17-Primary Air Plate (30000356) +$59.17
QTY: 18-Grate Wood ~Old Part #30000604~ (30000604A) +$131.45
QTY: 19 Firebrick [10 per unit, each sold separately] (1601103) +$11.68
QTY: 19A-Gasket Upper Brick Seal [6 ft per package] ~Old Part #s 30000504, 1-00-30000504~ (S15001-6) +$47.87
QTY: 20-Flue Cover Classic ~Old Part #30000351~ (30000351A) +$84.44
QTY: 20A-Flue Cover Vermont Classic Green ~Old Part #30003164~ (SRV30003164) +$267.44
QTY: 20B-Flue Cover Ebony (30000481) +$328.81
QTY: 20C-Flue Cover Forest Green (30000490) +$140.69
QTY: 20D-Flue Cover Bordeaux (30004004) +$191.73
QTY: 20E-Flue Cover Suede Brown (30002585) +$Call to Order
QTY: 20F Flue Cover Gasket [15 ft per package] ~Old Part #120-3591~ (1-00-1203591) +$55.28
QTY: 22 Front Classic ~Old Part #30000348~ (30000348A) +$180.39
QTY: 22A Front Ebony (30000478) +$Call to Order
QTY: 22B-Front Forest Green (30000487) +$Call to Order
QTY: 22C-Front Suede Brown (30002586) +$Call to Order
QTY: 22D-Front Bordeaux (30004005) +$Call to Order
QTY: 22E-Front Vermont Classic Green (30003165) +$Call to Order
QTY: 23 Door Classic [recommend replacing Gasket] ~Old Part # 30000350~ (30000350A) +$215.71
QTY: 23A-Door Ebony [recommend replacing Gasket] (30000480) +$507.85
QTY: 23B-Door Forest Green [recommend replacing Gasket] (30000489) +$172.79
QTY: 23C-Door Vermont Classic Green [recommend replacing Gasket] (30003166) +$Call to Order
QTY: 23D-Door Bordeaux [recommend replacing Gasket] (30004006) +$Call to Order
QTY: 23E-Door Suede Brown [recommend replacing Gasket] (30002587) +$Call to Order
QTY: 24-Primary Air Flap (30000370A) +$78.09
QTY: 25-Door Handle Catch (30000365) +$17.01
QTY: 26-Wooden Handle (30000366) +$15.68
QTY: 27-Door Handle Shaft (30000364) +$73.01
QTY: 28-Door Pin Long (1600416) +$11.68
QTY: 29-Glass Gasket Horizontal [recommend replacing Gasket] (30000382) +$10.95
QTY: 29A-Gasket Horizontal Formed Gasket for Glass [2 per unit, each sold separately] for EACH Glass] (30000382) +$10.95
QTY: 30-Glass Gasket Vertical [recommend replacing Gasket] [2 per unit, each sold separately] (30000383) +$10.95
QTY: 30A-Gasket Vertical Formed Gasket for Glass [2 per unit, each sold separately] for EACH Glass] (30000383) +$10.95
QTY: 31-Glass Panel (30000362) +$166.99
QTY: 32-Glass Retainer (30000474) +$30.02
QTY: 33A-Clip Screw [each sold separately] (1200980) +$11.18
QTY: 34-Door Manifold (30000357) +$59.17
QTY: 35-Flue Collar Classic [recommend replacing Gasket] ~Old Part # 30000353~ (30000353A) +$103.50
QTY: 35A-Flue Collar Ebony [recommend replacing Gasket] ~Old Part #30000483~ (SRV30000483) +$473.09
QTY: 35B-Flue Collar Forest Green [recommend replacing Gasket] (30000492) +$Call to Order
QTY: 35C-Flue Collar Bordeaux [recommend replacing Gasket] (30004008) +$133.92
QTY: 35D-Flue Collar Suede Brown [recommend replacing Gasket] (30002589) +$Call to Order
QTY: 35E-Flue Collar Vermont Classic Green [recommend replacing Gasket] ~Old Part #30003168~ (SRV30003168) +$227.89
QTY: 35F-Flue Collar Gasket [15 ft per package] ~Old Part #120-3591~ (1-00-1203591) +$55.28
QTY: 36-Friction Spring (1201846) +$11.18
QTY: 37-Primary Thermostat Assembly (30000503) +$106.04
QTY: 38-1/4 Inches Flat Washer Zinc 10 (1202474) +$11.18
QTY: 39-1/4 Inches-20X5/8 Inches Hex Screw (1201372) +$11.18
QTY: 40-1/4 Inches-20X 1 1/4 Inches FLT Head Phillips Screw (1200811) +$11.18
QTY: 41 Phillips Flat Head Screw [4 per unit, each sold separately] (1200881) +$11.18

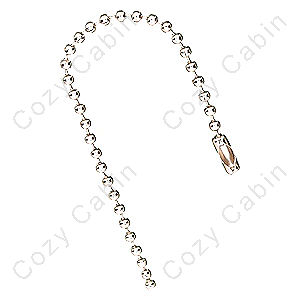

QTY: 42-Ball Chain Thermostat (1201960) +$11.68
QTY: 42A-Eyelet Thermostat (1201864) +$10.95
QTY: 42B-Fitting Ball Chain [connector from chain to Split ring] (1201972) +$15.06
QTY: 43-10 20X1/4 Inches Plain Truss Head Screw (1200996) +$11.18
QTY: 44-1/4 Inches-20X5/8 Inches Round Head Phillips Screw (1200896) +$12.65
QTY: 45-1/4 Inches-20X3/8 Inches Round Head Phillips Screw (1200894) +$11.68
QTY: 46-1 /4 Flat Washer (1202475) +$11.18
QTY: 48-1024X3/8 Inches Round Head (1200983) +$11.18
QTY: 49-3/16 Inches X1IN Roll Pin (1201833) +$10.95
QTY: 50-1/4 Inches-20X1IN Hex Head Screw ~Old Part #1201326~ (1201370) +$11.18
QTY: 51-Gasket Flat with Adhesive [10 ft per package] ~Old Part #s 30000504, 1-00-30000504~ (S15001-6) +$47.87
QTY: 52-1/4 Inches-20X3/8 Inches Pan Head Screw Phillips (1201053) +$11.18
QTY: 53-Deflector RIB (30000597) +$56.63
QTY: 54-Bottom Heat Shield (30000384) +$140.40
QTY: 54A-Bottom Heat Shield Hardware (1201053) +$11.18
QTY: 55-Handle Screw Pan Head Phillips (1200986) +$10.95
QTY: 56-Washer Flat 10 .218 ID X .5 OD (1202423) +$10.95
PARTS NOT SHOWN
Item Description (Part Number)
QTY: 57-Rear Heatshield (0001896) +$227.89
QTY: 58-Bottom Heatshield ~Old Part #0001895~ (30000384) +$140.40
QTY: 59-Heat Shield Hardware [Rear or Bottom] (0005834) +$80.63
GASKET
Item Description (Part Number)
QTY: 61-Gasket Flue Collar or Flue Cover [15 ft per package] ~Old Part #120-3591~ (1-00-1203591) +$55.28
QTY: 63-Gasket Vertical Formed Gasket for Glass [2 per unit, each sold separately] (30000383) +$10.95
QTY: 64-Gasket Horizontal Formed Gasket for Glass [2 per unit, each sold separately] (30000382) +$10.95
QTY: 65-Gasket Upper Brick Seal [6 ft per package] ~Old Part #s 30000504, 1-00-30000504~ (S15001-6) +$47.87
|
