Includes Models: 1-90-08260-1 Black, 1-90-08260-2 Charcoal, 1-90-08260-3 Goldenfire, 1-90-08260-4 Metallic Blue, 1-90-08260-5 Honey Glo, 1-90-08260-10 Mojave Red, 1-90-08260-12 Forest Green
Ending Manufacturing Date is January 2010
MAIN ASSEMBLY
Item Description (Part Number)
QTY: 1 DVG Weldment (1-89-08250) +$Call to Order
QTY: 2 Starter Collar Gasket (3-44-08294)*No Longer Available* +$*0.00*
QTY: 3 Starter Collar (3-40-3849239)*No Longer Available* +$*0.00*
QTY: 4 1/2 Inch Gas Inlet Flex Hose (3-40-08286)*No Longer Available* +$*0.00*
QTY: 5 Rear Log (3-40-08235) +$92.66
QTY: 6 Front Log (3-40-08236) +$142.02
QTY: 7 Top Twig Log (3-40-08237) +$59.46
QTY: 8 Ember Strip (3-40-08401) +$59.46
QTY: 9 Left Brick Panel (3-40-08232)*No Longer Available* +$*0.00*
QTY: 10 Right Brick Panel (3-40-08233) +$Call to Order
QTY: 11 Rear Brick Panel (3-40-08234)*No Longer Available* +$*0.00*
QTY: 12 Front Burner Tube with Extension (3-40-08693) +$252.02
QTY: 13 Center Burner Tube (3-40-08225) +$215.71
QTY: 14 Rear Burner Tube (3-40-08226) +$278.82
QTY: 14A Burner Tube Set (1-00-08693) +$908.52
QTY: 15 Extension Spring [2 per unit, each sold separately] (3-31-065487) +$Call to Order
QTY: 16 Formed Wire Gold Trim [3 per unit, each sold separately] ~Old Part # 3-40-00141~ (2-00-00141P)*No Longer Available* +$*0.00*
QTY: 17 Magnetic Latch [4 per package] ~Old Part # 3-31-08225~ (1-00-08225) +$Call to Order
QTY: 18 Snap Disc for Fan Control (3-20-408412) +$93.33
QTY: 19 21 Inch Terminal Block Wire Harness (3-20-326007)*No Longer Available* +$*0.00*
QTY: 20 Power Cord (3-20-326004)*No Longer Available* +$*0.00*
QTY: 21 Safety Switch (3-20-00907) +$45.67
QTY: 22 Glass Gasket [12 ft per package] ~Old Part # 3-42-2312~ (1-00-2312) +$98.42
QTY: 23 Door Gasket ~Old Part # 3-44-1086405~ (1-00-1086405) +$63.46
QTY: 24 Gold Plated Door Frame ~Old Part # 3-43-4103~ (1-10-4103S)*No Longer Available* +$*0.00*
QTY: 25 12-3/4 Inch x 19 Inch Large Glass [recommend replacing gasket] (3-40-120) +$381.98
QTY: 25A Glass Angle Retainer Clip [screws sold separately] (1-00-4181) +$63.46
QTY: 25B Glass Angle Retainer Clip Set Screw [each sold separately] (3-30-2007-50)*No Longer Available* +$*0.00*
QTY: 26 5-3/4 Inch x 12 3/4 Inch Small Glass [recommend replacing gasket] (3-40-121) +$95.33
QTY: 26A Side Glass Clip (2-00-4124B)*No Longer Available* +$*0.00*
QTY: 27 Distribution Blower ~Old Part # 3-21-22647~ (3-21-33647) +$337.04
QTY: 28 Pilot Tower Gasket (3-44-08287)*No Longer Available* +$*0.00*
QTY: 29 Valve [NG] ~Old Part # 3-40-820628~ (SRV230-0710) +$267.44

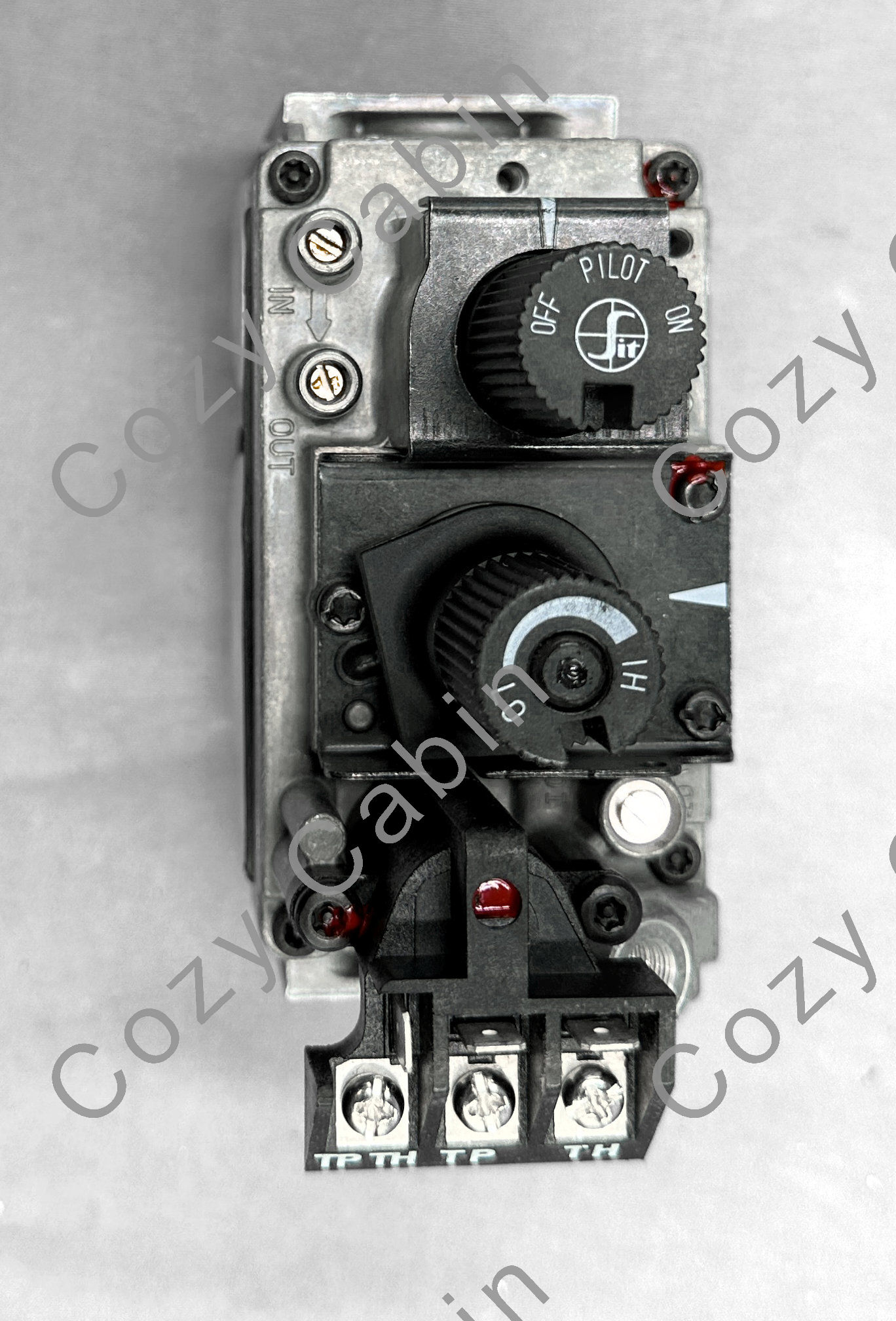

QTY: 30 Valve [LP] ~Old Part # 3-40-82057~ (SRV230-0720) +$267.44
QTY: 31 Orifice #56 [LP Front/NG Center] (3-40-57356) +$138.02
QTY: 32 Orifice #47 [NG Front] (3-40-64347) +$138.02
QTY: 33 Orifice #39 [NG Rear] (3-40-64739) +$138.02
QTY: 34 Orifice #71 [LP Center] (3-40-57271)*No Longer Available* +$*0.00*
QTY: 35 Orifice #53 [LP Rear] (3-40-57753)*No Longer Available* +$*0.00*
QTY: 36 Pilot Assembly [NG] [recommend using High Temp Red Silicone] (3-40-08714) +$217.19
QTY: 37 Pilot Assembly [LP] [recommend using High Temp Red Silicone] (3-40-08715) +$227.89
QTY: 37A High Temperature Red Silicone (70AW) +$12.79

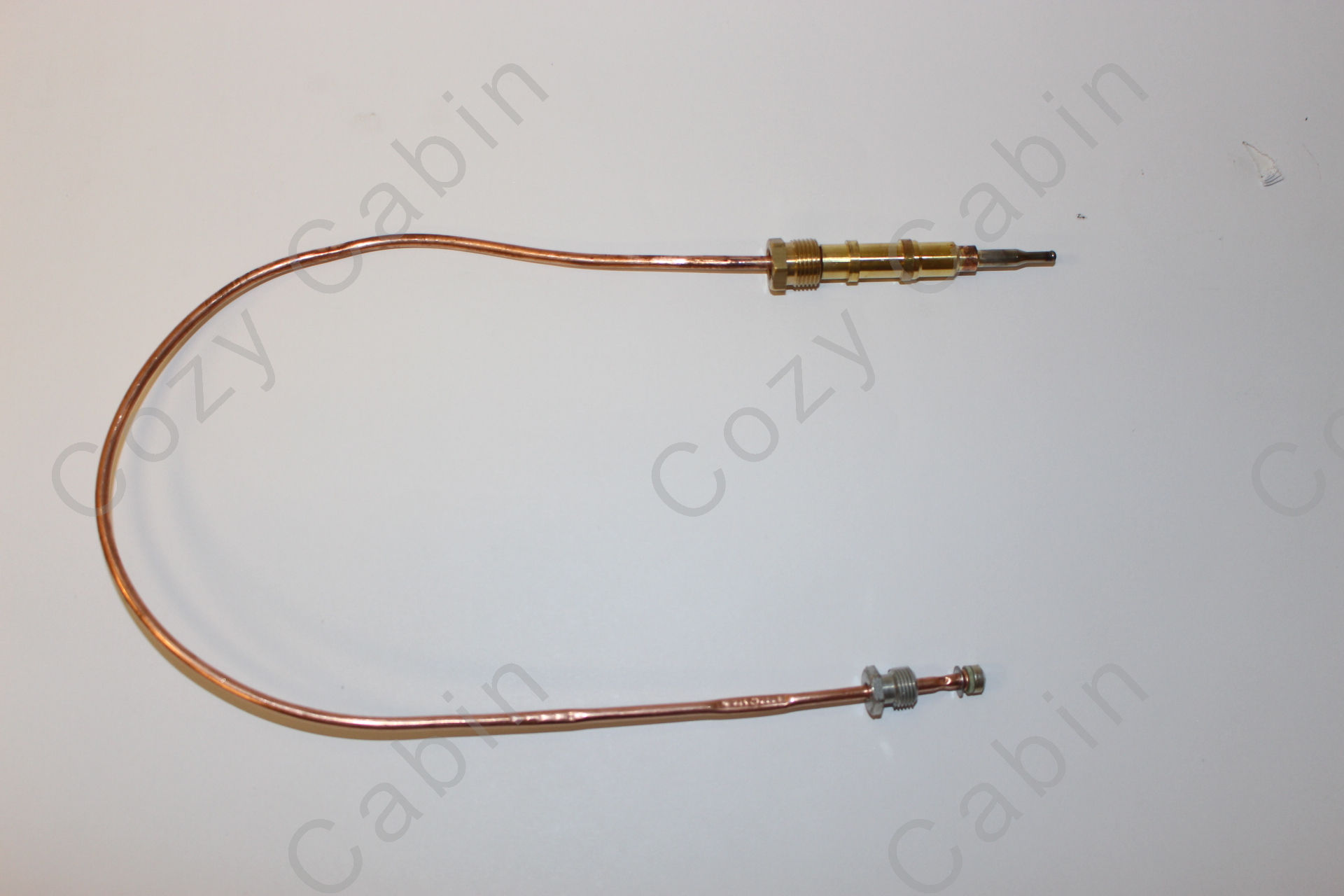

QTY: 38 Thermocouple with Nut [PSE Pilot] (3-40-08906) +$34.03
QTY: 38A Thermocouple [SIT Pilot] (3-40-08228) +$34.49
QTY: 39 Piezo Ignitor with Nut (3-40-08220) +$28.62
QTY: 40 90 Degree Brass Elbow (3-31-08282)*No Longer Available* +$*0.00*
QTY: 41 1/4 Inch tp 3/8 Inch Male Compression Fitting (3-31-08283)*No Longer Available* +$*0.00*
QTY: 42 3/8 Inch tp 3/8 Inch Male Compression Fitting (3-31-08234) +$Call to Order
QTY: 43 Screw BHSCS 5mm x 8mm for Valve ~Old Part # 3-30-310056082~ (3-30-1000-50)*No Longer Available* +$*0.00*
QTY: 44 18 Inch Valve Harness (3-20-326006)*No Longer Available* +$*0.00*
QTY: 45 Harness with Knob and VSC (3-20-326005)*No Longer Available* +$*0.00*
QTY: 46 On-Off Rocker Switch (3-20-08221) +$Call to Order
QTY: 47 Thermopile (3-20-08219) +$133.41
QTY: 48 3/8 Inch Tubing (2-00-08281)*No Longer Available* +$*0.00*
QTY: 49 Lower Safety Switch Bracket (2-00-4200) +$Call to Order
QTY: 50 Upper Safety Switch Bracket (2-00-4201) +$Call to Order
QTY: 51 Baffle ~Old Part # 2-00-4172~ (2-00-4172L) +$100.67
QTY: 52 Snap Disc Fan Control Bracket ~Old Part # 2-00-4173~ (2-00-4213P)*No Longer Available* +$*0.00*
QTY: 53 Left Arm Latch ~Old Part # 1-10-08265-1~ (1-10-08265-1W)*No Longer Available* +$*0.00*
QTY: 54 Right Arm Latch ~Old Part # 1-10-08265-2~ (1-10-08265-2W)*No Longer Available* +$*0.00*
QTY: 55 Left Latch Cam ~Old Part # 2-00-4138-1~ (2-00-4138-1L)*No Longer Available* +$*0.00*
QTY: 56 Right Latch Cam ~Old Part # 2-00-4138-2~ (2-00-4138-2L)*No Longer Available* +$*0.00*
QTY: 57 Front Door Assembly ~Old Part # 1-10-08287~ (1-10-08287P)*No Longer Available* +$*0.00*
QTY: 58 Top (1-10-08258) *No Longer Available* +$*0.00*
QTY: 59 Left Wing Door ~Old Part # 1-10-08262-1~ (1-10-08262-1S)*No Longer Available* +$*0.00*
QTY: 60 Right Wing Door ~Old Part # 1-10-08262-2~ (1-10-08262-2S)*No Longer Available* +$*0.00*
QTY: 61 Control Door ~Old Part # 2-00-4162~ (2-00-4162S)*No Longer Available* +$*0.00*
QTY: 62 Control Heat Shield ~Old Part # 2-00-4210~ (2-00-4210L)*No Longer Available* +$*0.00*
QTY: 63 Lower Rear Access Cover ~Old Part # 2-00-4177~ (2-00-4177P)*No Longer Available* +$*0.00*
QTY: 64 Base Trim ~Old Part # 2-00-4169~ (2-00-4169S)*No Longer Available* +$*0.00*
QTY: 65 Burner Plate (1-10-08277W) *No Longer Available* +$*0.00*
QTY: 66 Remote Control for Single Burner (1-00-7911)*No Longer Available* +$*0.00*
QTY: 67 Restrictor Plate (2-00-4218L) *No Longer Available* +$*0.00*
ACCESSORIES
Item Description (Part Number)
QTY: 66 Conversion Kit [LP to NG] (1-00-08260) +$290.44
QTY: 67 Conversion Kit [NG to LP] (1-00-08280) +$347.15
QTY: 68 Owners Manual [Hard Copy] [3-90-08290] (OMHC-VC) +$9.99
QTY: 69 Owners Manual [Electronic Copy] [3-90-08290] (OMEL-VC) +$0.00
|
